Catalog Download

Suntes Product Catalogs

Hydraulic Disc Brakes

Products image
DB-2021

A hydraulically-actuated disc brake is ideal for operating wire rolling machines, traveling and turning cranes, and tire machines.

Catalog List
DB-2008
DB-2021B/DB-2021S
DB-2050
DB-2051/DB-3045Y·3060Y

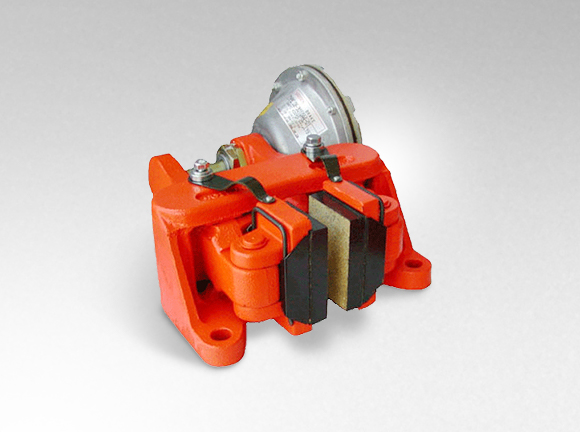

Pneumatic Disc Brakes

Products image
DB-3010A

The brake force of a pneumatic disc brake can be easily obtained from the air pressure of plant piping. It has high heat resistance and is easy to install.

Catalog List
DB-3004A
DB-3005A/DB-3002A
DB-3003A
DB-3012A/DB-3010A
DB-3020A/DB-3034A
DB-3035AW/DB-3032A
DB-3033A/DB-3038A
DB-3039A

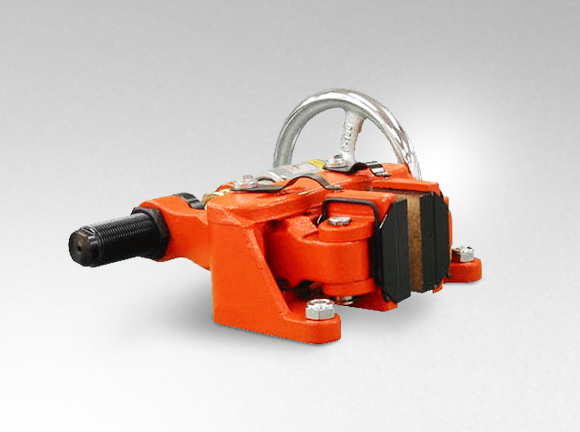

Mechanical Disc Brakes

Products image
DB-3010M

A mechanical disc brake is operated manually. It is easy to operate and makes it possible to obtain reliable braking force.

Catalog List
DB-3004M/DB-3005M
DB-3004H/DB-3005H
DB-3004H-101/DB-3012M
DB-3010H/DB-3010M
DB-3013H/DB-3023H

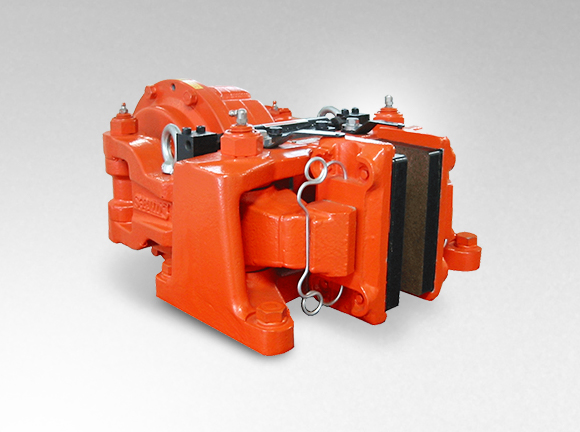

Spring Applied Pneumatic-Release-type Disc Brakes

Products image
DB-3010AF

A spring-applied, pneumatic-release-type disc brake is a reversing brake operated by spring force and released by air pressure.
It is ideal for steelmaking machines and vehicles.

Catalog List
DB-3010AF/DB-3020AF
DB-3029AF/DB-3032AF
DB-3033AF/DB-3038AF
DB-3039AF/DBF PAC series

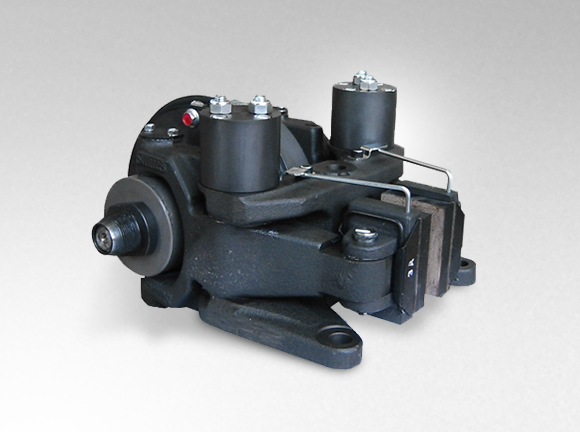

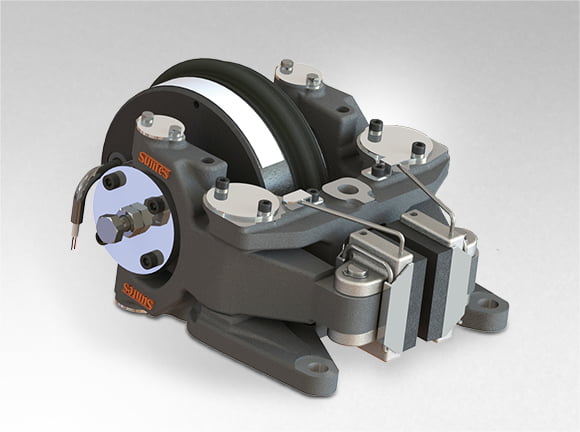

Spring Applied Electromagnetic-Release-type Disc Brakes

Products image
DB-4010EF

This is a reverse disc brake that is actuated by spring force and released by electromagnetic force.
This brake ensures improved safety because it is actuated when the control power is turned off.
It is ideal for the back-and-forth and lateral movement of cranes.

Catalog List
DB-4010EF/DB-4011EF
DB-4020EF/DB-4021EF
DB-4032EF/DBE PAC series
Power supply box (AP-2403)

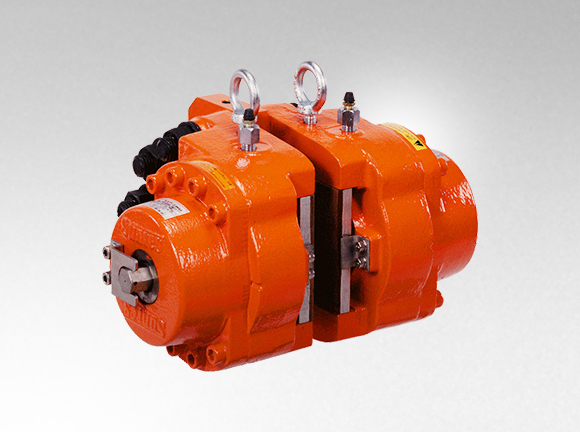

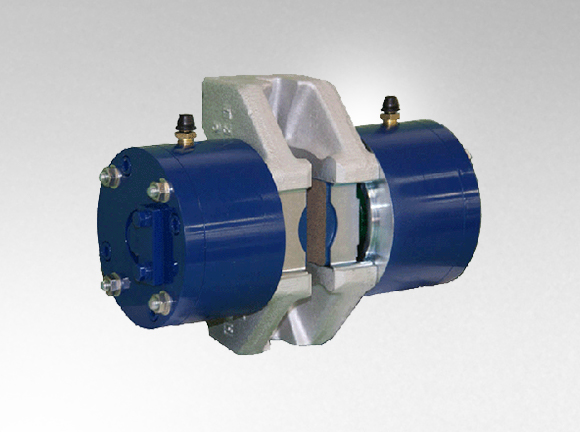

Hydraulic Clampers

Products image
DC-2021YF

A hydraulic clamper is a reliable and stable brake to hold rotating bodies and stop them in case of emergency. It has a wide range of applications and a robust design structure boasting high performance. It ensure excellent safety because the brake is applied when the control power source or pressure source is cut off.

Catalog List
DC-2021YF·2022YF
DC-2052YF·2053YF/DB-5503YF
DB-5508YF/DB-5520YF

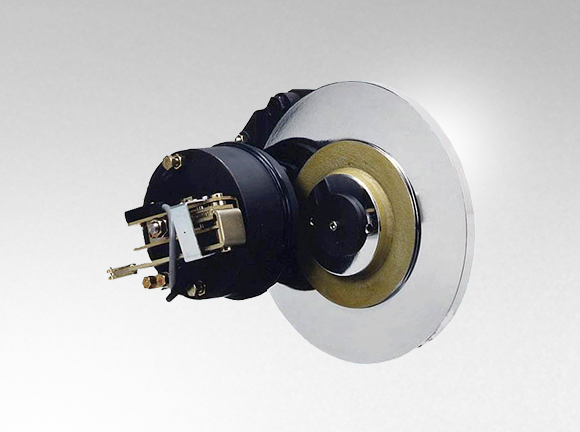

Electromagnetic Negative Clampers

Products image
EC-5420EF

An electromagnetic negative clamper is used exclusively for elevator traction machines. In the case of using it for industrial machinery, please be sure to consult us.

Catalog List
DB-5410EF/EC-5420EF
EC-4023EF/EC-5430EF

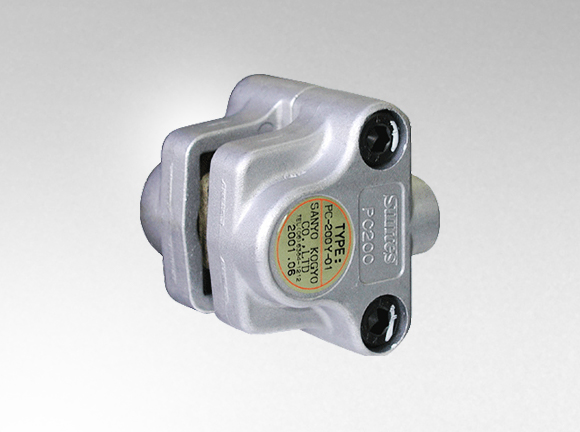

Posi. Clampers

Products image
PC-Y type

A positive clamper is a hydraulically or pneumatically actuated, spring-released-type brake dedicated to holding or emergency stop operations.
It has non-backlash specifications to hold jigs and the spindles in machine tools.
It can be used for positioning carts and conveyors.

Catalog List
PC-Y type (Hydraulic posi. clamper)
PC-A type (Pneumatic posi. clamper)

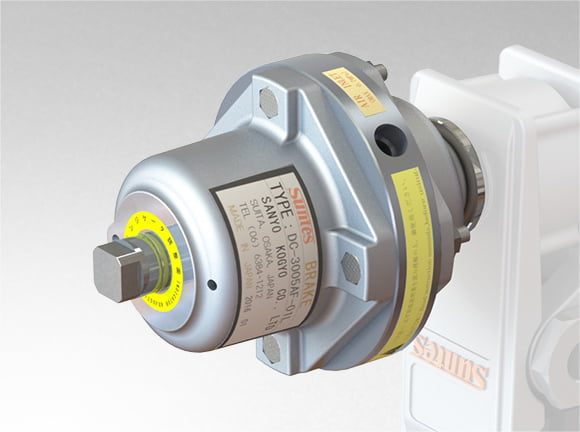

Pneumatic Clampers

Products image
DC-3005AF

A pneumatic clamper is a reliable and stable brake to hold rotating bodies and stop them in case of emergency. It has a wide range of applications and a robust design structure boasting high performance. It ensure excellent safety because the brake is applied when the control power source or pressure source is cut off.

Catalog List
DC-3005AF
DC-3002AF

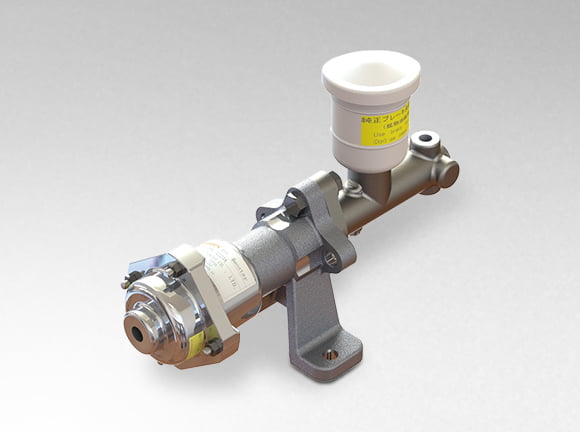

Air Hydraulic Boosters

Products image
DB-3223A

Increased hydraulic pressure can be obtained by supplying air, and controll of disc brake is easily operated by ON-OFF of air.

Catalog List
DB-3223A
DB-3233A/DB-3246A
DB-3255A/DB-3256A
DB-3277A/DB-2334A
DB-5244AF

Manual Boosters

Products image

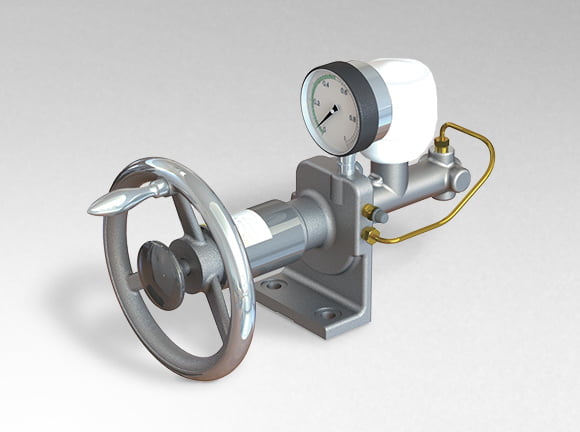

DB-2413

High oil pressure can be obtained through built-in spring by rotating handle. Braking force of long time for tension brake and of delicacy can be acquired.

Catalog List
DB-2413·2415

E Boosters

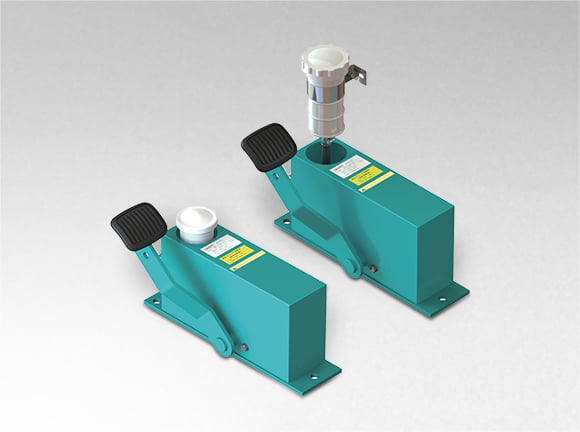

Foot Pedal Units

Products image
DB-2102

Brake is operated by stepping on to foot pedal like automobile.
This unit is used for crane, running truck etc.

Catalog List
DB-2102·2103/DB-2123·2104·2105·2106·2107

Combination Units

Products image

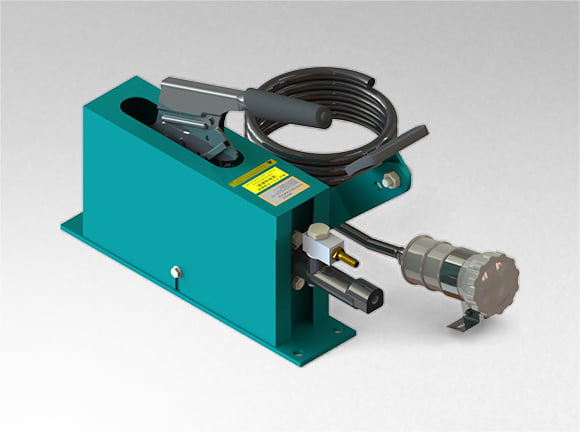

DB-2183

This unit is equipped with pedal and hand lever. Normally brake is operated by pedal like automobile.
For parking, able to retain oil pressure at same position by pulling hand lever.

Catalog List
DB-2183·2184·2185

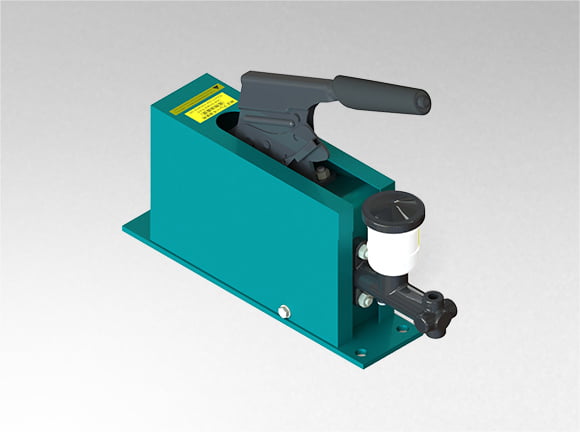

Hand Lever Units

Products image
DB-2173
Catalog List
DB-2173

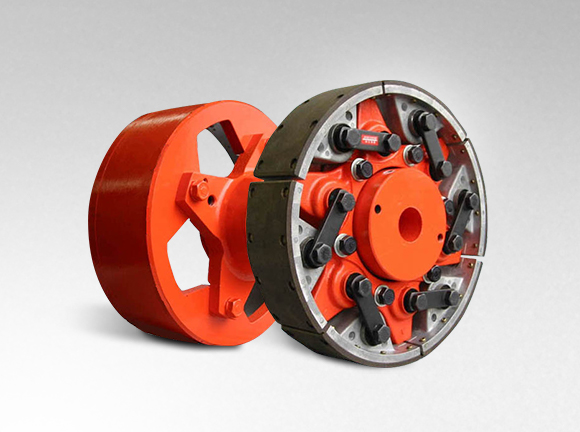

Centrifugal Clutches Basic Type

Products image
Type C

The basic-type centrifugal clutch improves the starting performance of starters, such as engines, and protects the shaft systems from overloading.
This is suitable for engine-driven drain pumps, digestion pumps, refrigeration compressors, and construction machinery hydraulic pumps.

Catalog List
Type C/Type FA

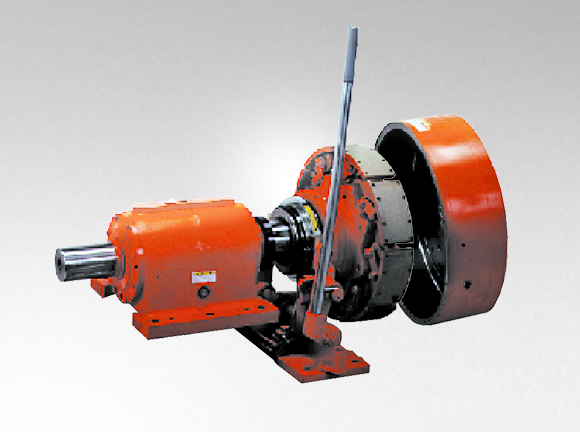

Centrifugal Clutches Lock Type

Products image
Centrifugal Clutches Lock Type

The lock-type centrifugal clutch is a compound centrifugal clutch that incorporates gear clutch components compactly. It supports the stand-alone operation of engines, reverse rotation prevention of driving machines, automatic switching, cushion starting, and flexible coupling of engines and motors.

Catalog List
NCL type/NCL-1B type
NCL-2B type/NCLU type

NS Type Centrifugal Brakes

Products image
NS Type

A centrifugal brake has a fixed drum with a unit assembly set inside the drum. When the unit assembly is rotated, centrifugal force will raise all the brake shoes. Then, the lining will be pressed (pressurized) against the inner surface of the drum, which will cause a braking effect on the rotating shaft.

Catalog List
NS5-2S/NS7-2S/NS9-3S/NS9-3W/NS12-3S/NS13-3S

TX Type Torque Releasers

Products image

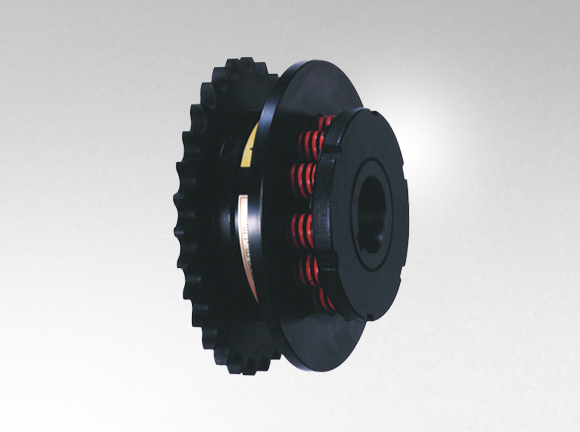

TX30B

There are four kinds of TX-type Torque Releaser (automatic reset type) models, i.e., B, D, E, and R models so that they can be applied to various applications. The basic clutch mechanism has the same structure.

Catalog List
TX □ B type
TX □ D type
TX □ E type
TX □ R type

TY Type Torque Releasers

Products image

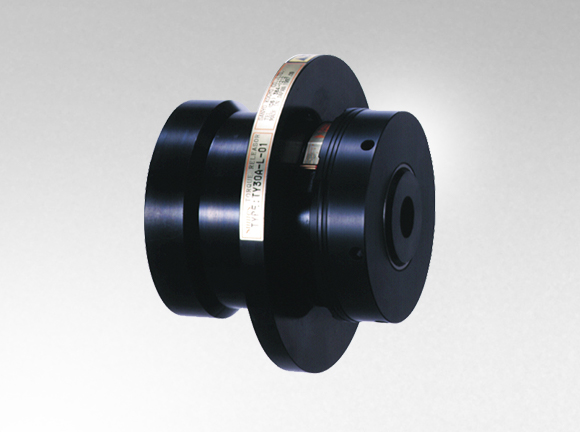

TY30A

There are three TY-type Torque Releaser (manual return type) models, i.e., A, D, and AR models. The basic clutch mechanism has the same structure.

Catalog List
TY □ A type
TY □ D type
TY □ AR type
ON, OFF Shifter

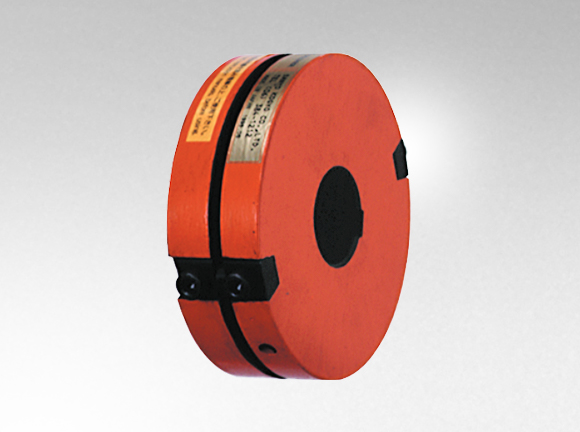

TV Type Torque Releasers

Products image
TV40

TV Shear Pin Type. It automatically releases the drive shaft system when an overload is applied. It is suitable for automatic machines, such as press machines, kneaders, and plastic molding machines.

Catalog List
TV □ DW type

SE Type Torque Releasers

Products image

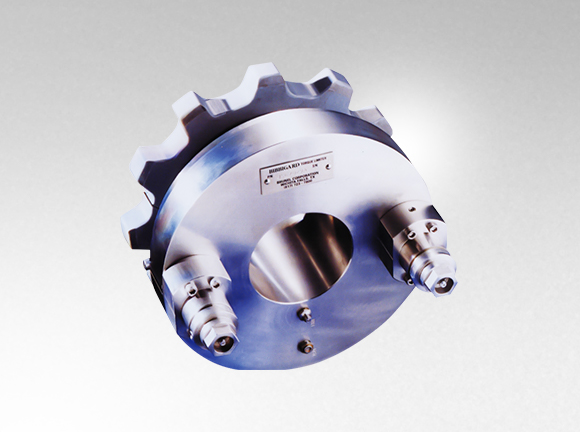

SE Type

It automatically releases the drive shaft system when an overload is applied. It is suitable for automatic machines, such as press machines, kneaders, and plastic molding machines.

Catalog List
SE Type

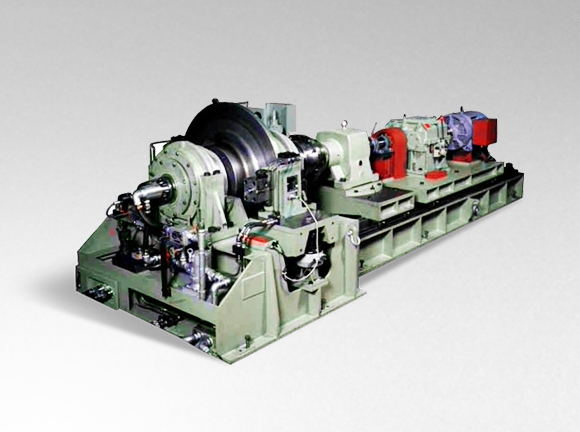

Load Testers

Products image
Load Tester

A load tester adopts a low-speed, high-torque type dynamometer.
A load tester incorporates a water-cooled disc mounted on the input shaft and clamped by a pneumatic or hydraulic disc brake to apply a mechanical load, and the generated reaction force is detected with a load cell for torque conversion.

Catalog List
Type A/Type B/Type C

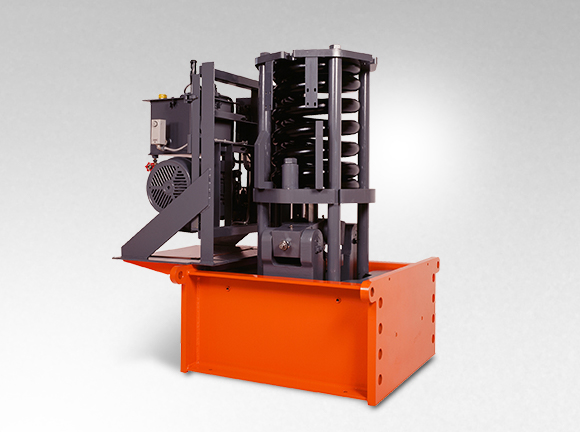

Rail Clampers

Products image
Sill Beam Installation Type

A rail clamper is a device that secures a rail directly so that the outdoor crane will not run away during intense winds.

Catalog List
RC-1013/RC-1018/RC-1026/RC-1038/RC-1050/RC-1075

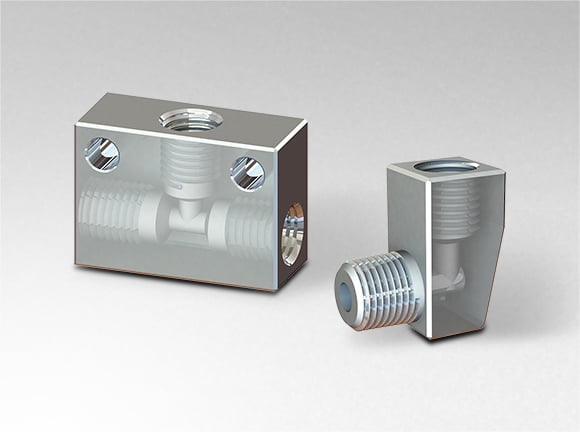

Piping Parts
